Tankers · 2024

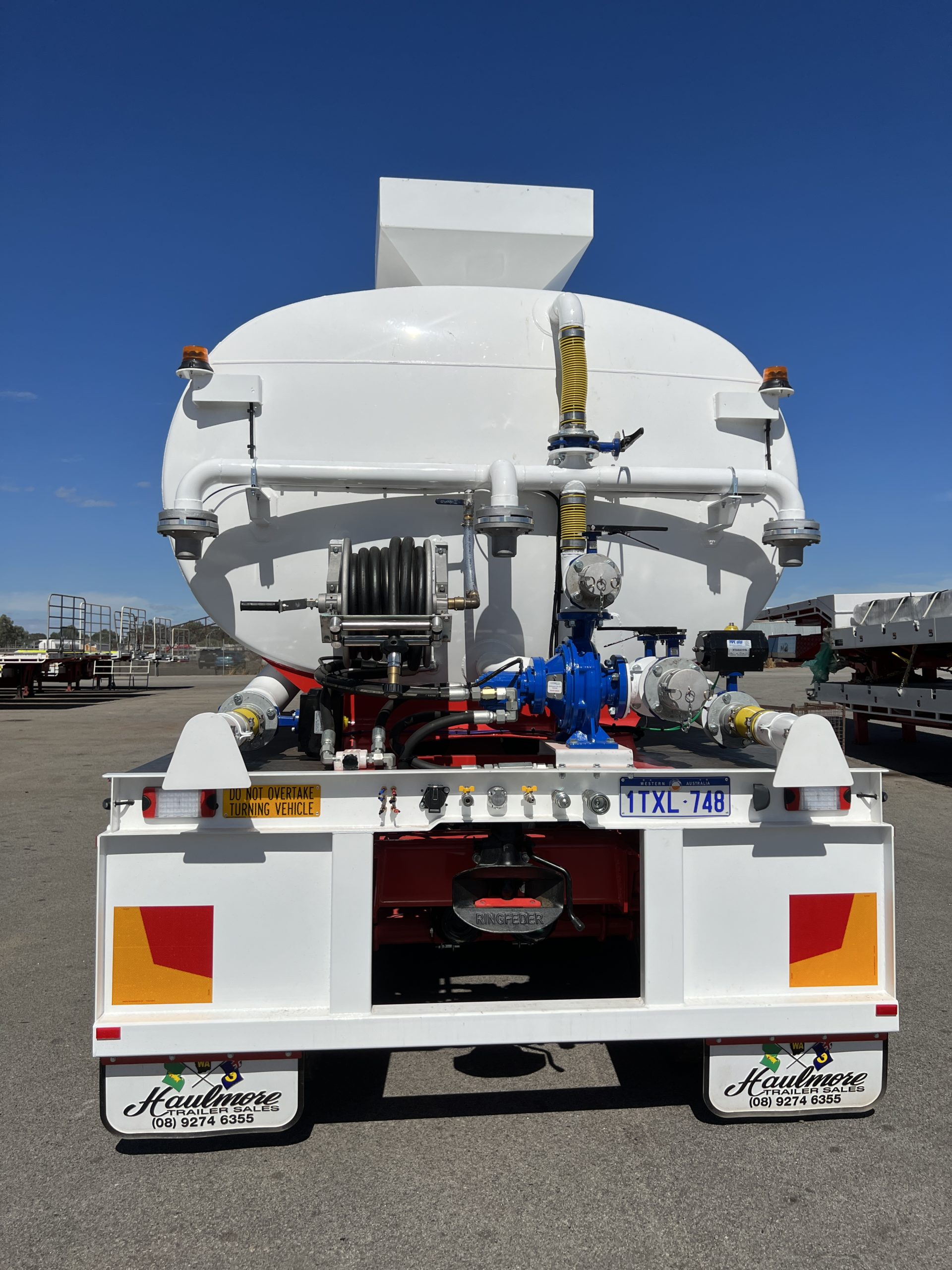

2024 Haulmore Tri-Axle Stainless Steel Water Tanker
30,000 L stainless steel tri-axle water tanker built for a 20-year life span
30,000 LITRE WATER TANKER 304 GRADE STAINLESS STEEL 20 YEAR LIFE SPAN LONGITUDINAL WASH PLATE FOR LATERAL STABILITY 4 TRANSVERSE BAFFLES ALL PLUMBING PIPEWORK STAINLESS STEEL AUSTRALIAN HYDRECO CLOSE COUPLED ISO PUMP INDEPENDENT AND SEPARATE FAN SPRAYS FOR GROUND DISCHARGE OSCILLATING STRESS RELIEVED AUSTRALIAN DESIGN AND MANUFACTURE TANK LENGTH 10000MM TANK WIDTH 2490MM TANK HEIGHT TOW HITCH – RING FEEDER 50MM PUMPIN GEAR AUSTRALIAN HYDRECO PUMP ISO WATER PUMP TANK CONSTRUCTION – GRADE 314 STAINLESS STEEL
Inspect this trailer
The numbers
Specifications
Dimensions
| Tank length | 10000mm |
|---|---|
| Tank width | 2490mm |
Running Gear
| Tyres | 11R22.5 X 16 PLY |
|---|---|
| Stud count | 10 STUD |
| PCD | 285 PCD |
| Axle make | FUWA |
| Suspension | FUWA 9 LEAF 2.7 METRE SPREAD |
| Leaf count | 9 LEAF |
| Suspension spread | 2.7 METRE SPREAD |
| Axle configuration | tri-axle |
| Axle count | 3 |
Braking & Electrical
| Brake system | Drum brake |
|---|
Capacity
| Tank volume | 30,000 L |
|---|---|
| Tank material | 304 grade stainless steel |
Securing & Accessories
| King pin | 90mm |
|---|---|

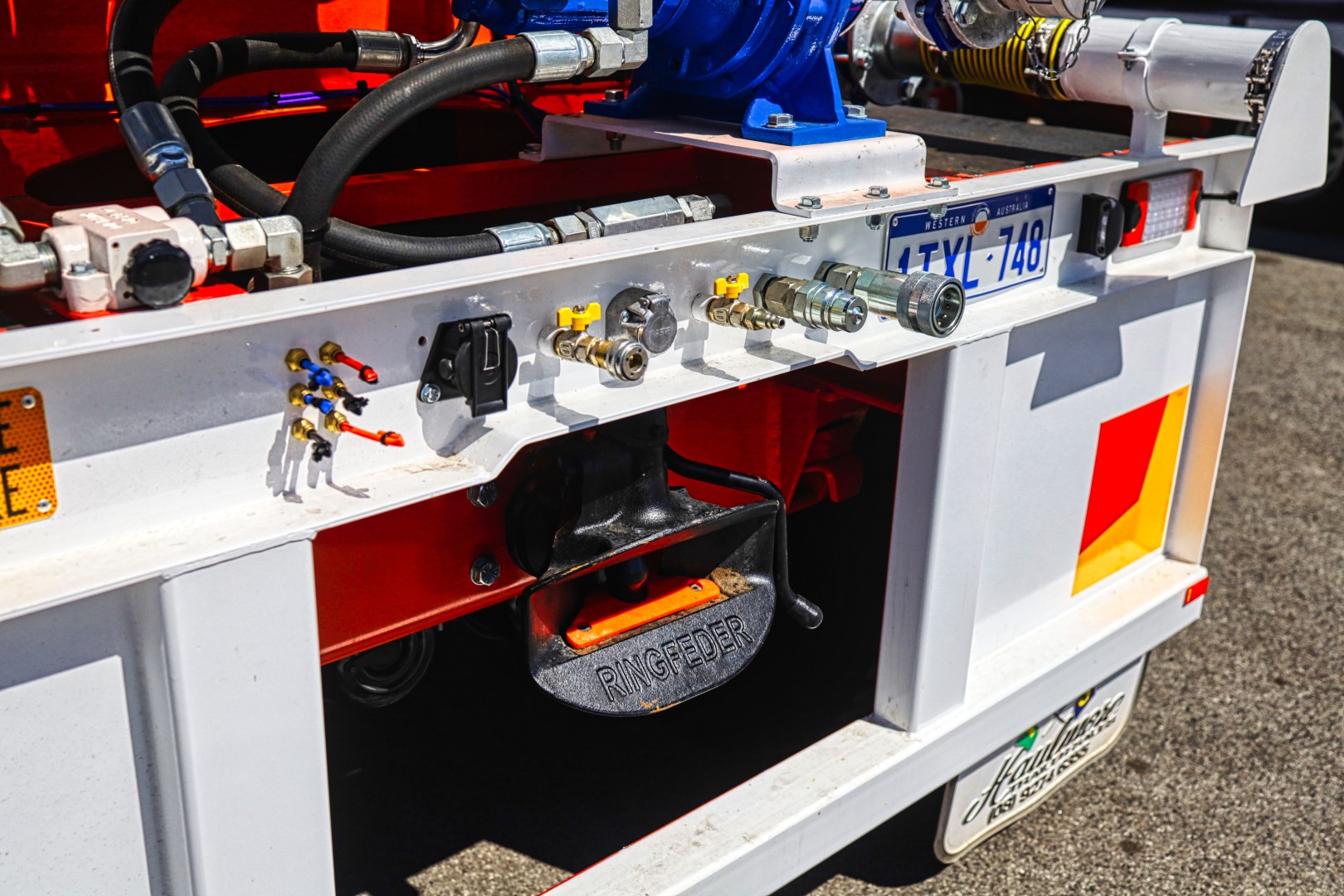

| Hitch type | RING FEEDER 50MM |
- Source page lists both 304 grade (Design Features) and 314 grade (Tank Construction) stainless steel for the tank
Features and use cases
Key features
- 30,000 LITRE WATER TANKER
- 304 GRADE STAINLESS STEEL
- 20 YEAR LIFE SPAN
- LONGITUDINAL WASH PLATE FOR LATERAL STABILITY
- 4 TRANSVERSE BAFFLES
- ALL PLUMBING PIPEWORK STAINLESS STEEL
- AUSTRALIAN HYDRECO CLOSE COUPLED ISO PUMP
- AUSTRALIAN DESIGN AND MANUFACTURE
